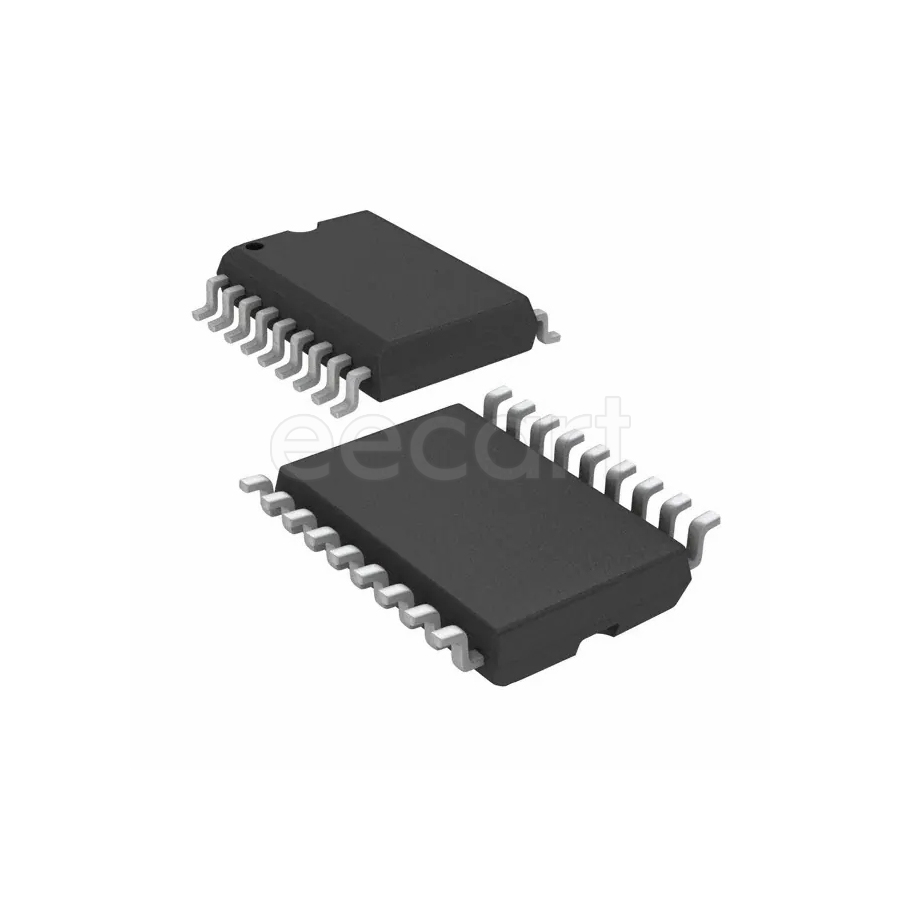

ADS1210U
Manufacturer:
Texas Instruments
Mfr.Part #:
ADS1210U
Datasheet:
Description:
Analog to Digital Converters (ADCs) SOP-18 SMD/SMT number of channels:1 Number of Inputs:1 3 B 16 ksps Core Architecture:Sigma-Delta
| Parameter | Value |
|---|---|
| Length | 11.55 mm |
| Width | 7.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 18 |
| Height | 2.65 mm |
| Thickness | 2.3 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Number of Elements | 1 |
| Interface | SPI, Serial |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Active |
| Max Power Dissipation | 60 mW |
| Max Supply Voltage | 5.25 V |
| Min Supply Voltage | 4.75 V |
| Power Dissipation | 37 mW |
| Max Supply Voltage (DC) | 5.25 V |
| Number of Channels | 1 |
| Number of Bits | 24 |
| Number of Inputs | 1 |
| Supply Type | Analog, Digital |
| Sampling Rate | 16 ksps |
| Number of Converters | 1 |
| Nominal Supply Current | 3.5 mA |
| Number of Analog Inputs | 1 |
| Min Supply Voltage (DC) | 4.75 V |
| power consumption | 37 mW |
| Resolution | 3 B |
| Number of A/D Converters | 1 |
| Reference Voltage | 2.5 V |
| Conversion Rate | 16 ksps |
| Differential Nonlinearity | 1 LSB |
| RoHS | Compliant |
| Packaging | Tube |
| Features | PGA |
| Configuration | PGA-ADC |
| Input Type | Differential |
| Interface Type(Data Interface) | 3-Wire, I²C, SPI |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Max Digital Supply Voltage | 5.25 V |
| Min Digital Supply Voltage | 4.75 V |
| Core Architecture(core/core processor) | Sigma-Delta |
| Reference Type | External, Internal |
